Part No. 3.0GMBOK

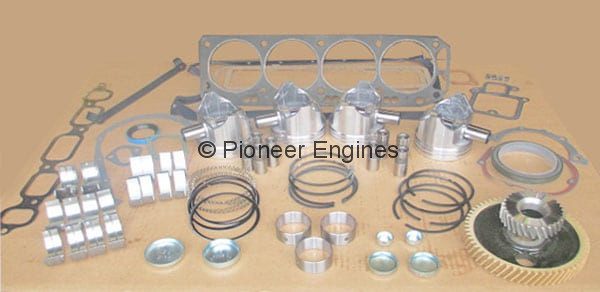

Kit includes all applicable parts listed below:
Select Component Sizes (Pistons, Ring Set, Rod & Main Bearings) Required for your Kit
| Piston Sizes Available | STD. | .50mm | 1.00mm | |
|---|---|---|---|---|
| Piston Set (4) | 118100 | 118102 | 118104 | |
| Ring Set (4) | R40054 | R4005402 | R4005404 |
| Bearings Sizes | STD. | .25mm | .50mm | .75mm |
|---|---|---|---|---|
| 0.85 Rod Bearing Set (4) – Wide | 181RBWSTD | 181RBW010 | 181RBW020 | 181RBW030 |
| 0.7 Rod Bearing Set (4) – Narrow | 181RBNSTD | 181RBN010 | 181RBN020 | 181RBN030 |
| Main Bearing Set | 181MBSTD | 181MB010 | 181MB020 | 181MB030 |
| Camshaft Bearings | 181CSB | |||
| Timing Gear Set | 181TS | |||
| Lifters | 181LIF | |||
| O/H Gasket Set | 3.0 OHGS | |||
| Freeze Plug Kit | FPK-3.0 |
STD Bore Size 4.00 STD Rod Journal Size 2.100 STD Main Journal Size 2.299
Other additional parts
Miscellaneous
EP62ET – Oil Pump
Shipping and handling not included and will be billed separate.
All references to original manufacturer’s trade names and part numbers are for identification purposes only. We do not warrant the accuracy of the information and data contained herein and specifically disclaim any and all liability arising from errors, omissions or consequential harm resulting therefrom. There is no affiliation between Pioneer Engine Company, Inc. and the original manufacturer’s listed herein.
