Part No. XN1PBOK

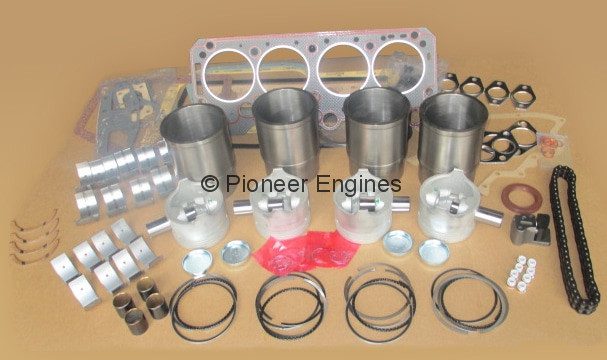

Kit includes all applicable parts listed below:
Select Component Sizes (Pistons, Ring Set, Rod & Main Bearings) Required for your Kit
| Piston Sizes Available | STD. | .50mm | 1.00mm | |
|---|---|---|---|---|
| Standard liner kit only | 7W0346 (4P4237) | |||
| Bearings Sizes | STD. | .30mm | .50mm | .80mm |
|---|---|---|---|---|
| Rod Bearing Set | 2W9422 | 4W6176 | 4W6177 | 4W6178 |
| Main Bearing Set | 4W6134 | 4W6133 | 4W6135 | 4W6136 |
| Thrust Washers | 4W6165 | |||
| Timing Chain | 2W9496 | |||
| Tensioner | 2W9497 | |||
| Pin Bushings | 2W9417 | |||
| O/H Gasket Set | 7W1725 | |||
| Freeze Plug Kit | FPK-XN1P |
STD Bore Size 3.462 STD Rod Journal Size 1.967 STD Main Journal #1 Journal 2.338
Shipping and handling not included and will be billed separate. All references to original manufacturer’s trade names and part numbers are for identification purposes only. We do not warrant the accuracy of the information and data contained herein and specifically disclaim any and all liability arising from errors, omissions or consequential harm resulting therefrom. There is no affiliation between us and the original manufacturer’s listed herein. |
